Detecting light and radiation is essential across the electromagnetic spectrum, but some regions remain especially challenging. One of those is the terahertz (THz) range, which sits between microwaves and infrared light. Existing detectors for these frequencies are often slow, lack sensitivity, or depend on large, costly equipment that frequently requires cryogenic cooling.
Researchers have now developed a compact new detector that combines quantum physics with a specially engineered metasurface to significantly improve the way terahertz radiation is captured and converted into electrical signals. Their findings were recently published in Advanced Photonics.
A Quantum Approach to Terahertz Detection
The new device relies on a phenomenon known as the in-plane photoelectric effect. In this process, incoming terahertz photons transfer energy to electrons confined within a two-dimensional electron gas. Those energized electrons cross a carefully designed potential step, producing an electrical current that can be measured.
Unlike conventional photoelectric detectors, this mechanism does not require photons to exceed a minimum energy threshold. Because the process occurs entirely within the plane of the material, it also avoids several efficiency limitations that have constrained earlier detector designs.
Previous detectors based on the same principle showed promising sensitivity, but they captured only a small portion of incoming radiation because they depended on individual antenna elements.
Metasurface Concentrates Radiation Into Tiny Detection Regions
To overcome that limitation, the research team designed the detector around a metasurface, a patterned structure that concentrates electromagnetic energy into extremely small regions.

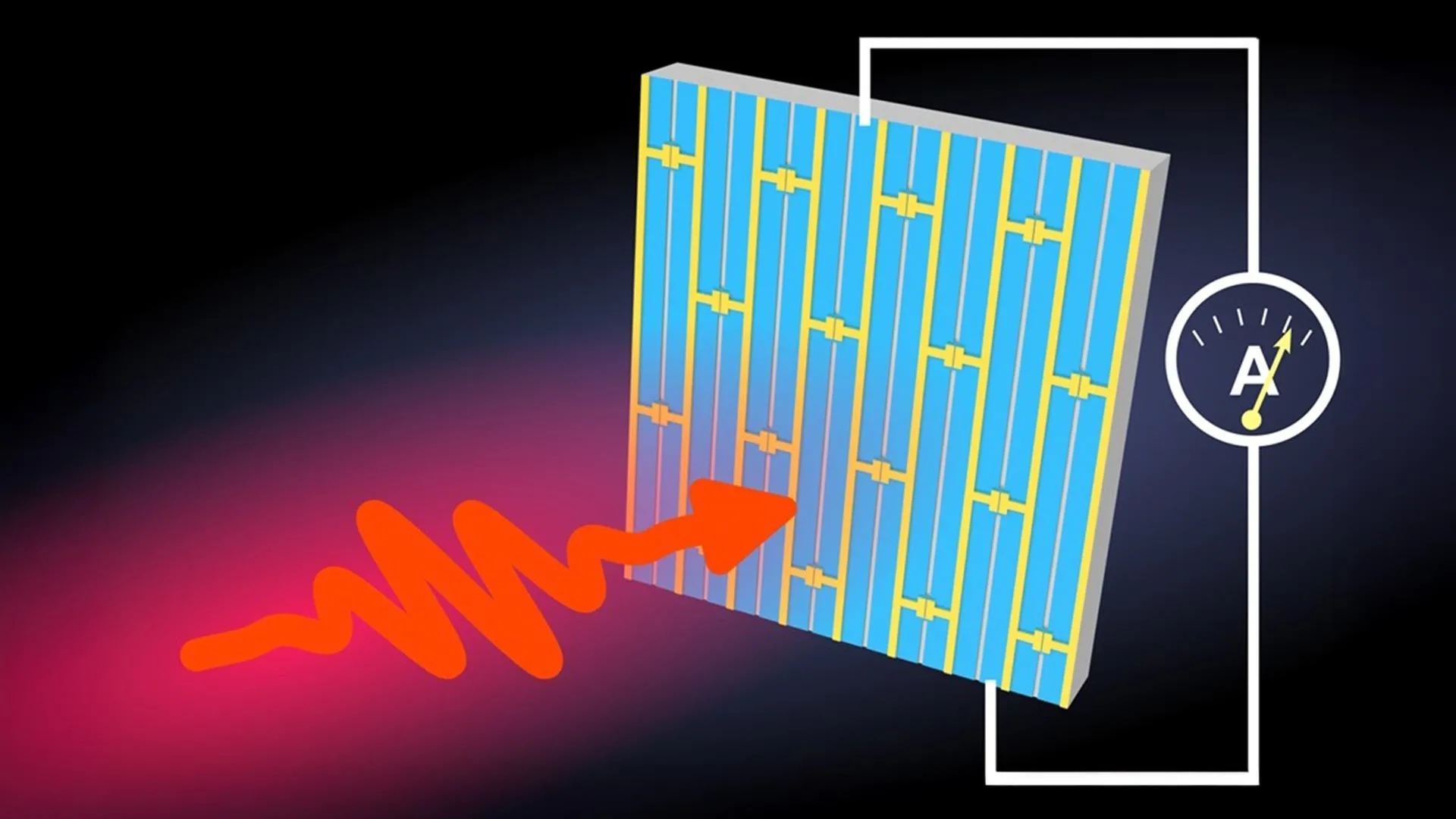

The device uses a repeating “brickwork” pattern that serves two purposes. It collects incoming terahertz radiation and channels it into narrow gaps where the detection process takes place.
Each gap functions as an individual detector. By distributing many of these detection elements across the surface and electronically linking them together, the researchers were able to combine their outputs into a stronger overall signal.
This approach eliminates the need for external optics or complicated detector arrays. It also ensures that incoming radiation is concentrated only in areas where it directly contributes to signal generation.
Integrating Light Collection and Detection
Rather than designing the detector and light-collection system separately, the team began with the metasurface itself and built the detection elements directly into regions where the electric field is strongest.
Individual photoelectric tunable-step (PETS) detection elements were embedded inside the metasurface’s capacitive gaps.
“This ensures optimal coupling of the metasurface to the detection elements,” notes corresponding author Wladislaw Michailow, who led the research at the University of Cambridge and later at Swansea University in the UK.
“Compared to the conventional approach of connecting multiple devices in parallel, this approach allowed us to significantly boost the detection sensitivity,” adds Michailow.
The researchers used computer simulations to optimize important structural features, including gap dimensions and the spacing between repeating units. These parameters determine how tightly the electric field is confined and how much photocurrent is ultimately produced. The final design balances field enhancement with the width of the electron channel to maximize measurable output.
Semiconductor-Friendly Design
The detector was fabricated using a semiconductor structure containing a high-mobility electron gas. The manufacturing process is similar to techniques already used for field-effect transistors, offering a practical route toward integration with existing electronic systems.
Because the metasurface itself concentrates the incoming radiation, external focusing components such as silicon lenses are unnecessary. This simplifies assembly and could make large-scale manufacturing more practical.
To test the device, researchers cooled it to 10 K and exposed it to radiation near 1.9 THz. The detector produced a clear electrical response that matched the on-off modulation pattern of the incoming signal.
Twenty-Fold Improvement in Efficiency
Measurements revealed a responsivity of 2.7 amperes per watt.
The proof-of-concept device also achieved an external quantum efficiency of 2.1 percent at 1.9 THz, representing roughly a twenty-fold improvement compared with previously demonstrated PETS detectors.
According to the researchers, much of this performance gain comes from the metasurface’s ability to capture a larger fraction of incoming radiation and focus it directly into the detector’s active regions.
Another advantage is that the detector operates with zero source-drain bias. This helps reduce noise by eliminating dark currents.
“The devices are direct detectors operating at zero bias, and therefore, they operate without dark currents,” observes first author Ruqiao Xia, who fabricated and measured the devices as part of her doctoral research in the Semiconductor Physics Group at the Cavendish Laboratory of the University of Cambridge.
Because the design can be scaled geometrically, the same concept could potentially be adapted for use across a wide range of frequencies, from microwave to mid-infrared wavelengths.
Potential Applications Across Multiple Fields
The planar architecture also offers practical benefits. Since it is compatible with standard semiconductor manufacturing techniques, the detector can be integrated directly with on-chip electronics.
The use of flat metasurfaces removes the need for precise alignment of external optical components, simplifying packaging and deployment compared with many existing terahertz systems.
The researchers also believe the technology may operate at higher temperatures than many competing detector platforms. Similar PETS detectors have already demonstrated performance at temperatures achievable with compact cryocoolers rather than requiring liquid helium cooling.
This could help fill an important gap between highly sensitive cryogenic detectors and lower-sensitivity room-temperature devices, potentially expanding the range of real-world terahertz applications.
The study represents the first demonstration of a quantum metasurface photodetector based on a two-dimensional electron system. By combining highly efficient light capture with a sensitive quantum detection mechanism, the work marks a significant step toward overcoming long-standing challenges in terahertz technology.
“The results are particularly intriguing due to the applications that terahertz technology can enable, in areas such as wireless network, healthcare, astronomy, biomedicine, quality assurance in manufacturing, and many others,” remarks coauthor David Ritchie, head of the Semiconductor Physics Group.
By integrating metasurface optics directly into the detector itself, the researchers demonstrate how advances in quantum physics and materials engineering can help unlock the full potential of terahertz technology.
